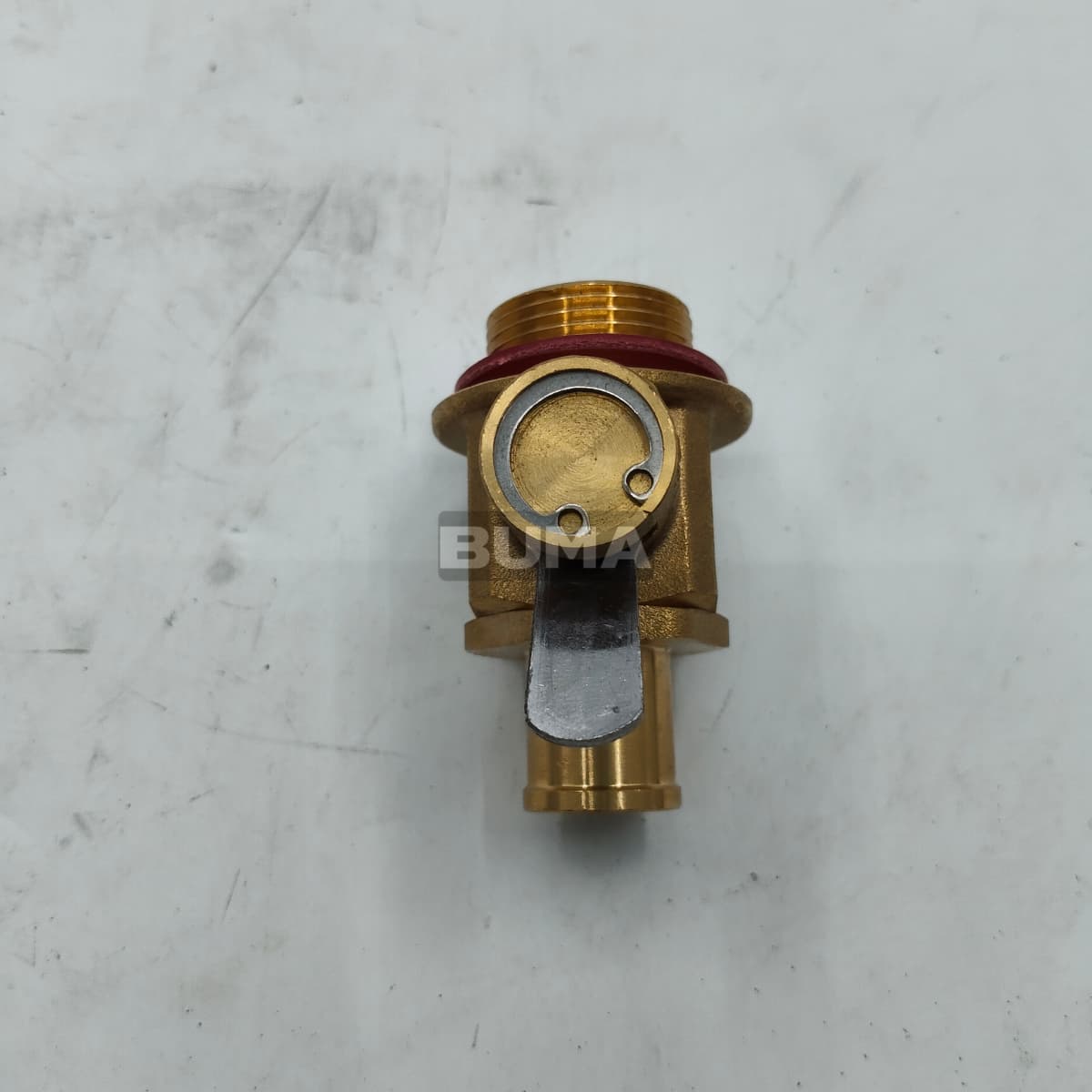

183-8176 Oil Pan Valve For Caat

183-8176 (also written as 1838176) is the Engine Oil Pan Valve. It serves as a leak-proof, easy-to-operate alternative to standard oil drain plugs, designed to make engine oil maintenance faster, cleaner, and less prone to accidental spills.

Thread Size: M24 X 1.5

Valve/Hose Connection Size: 3/8 inch

Overall Length: 1.97 inches (approx. 50 mm)

This oil pan valve is directly integrated into the oil pan groups of several major Caterpillar engine series: CAT 3066,CAT C4.2,CAT C6,CAT C6.4.

The part is most widely utilized across Caterpillar Hydraulic Excavators, enabling clean oil changes in the field:

Small & Medium Excavators: 311D LRR, 312D / 312D L, 313D, 315D L, 318C / 318D L, 319C / 319D series.

Core Fleet Excavators: 320C, 320D, 321C, 323D series.

Power Units: 323D L Mobile Hydraulic Power Unit.

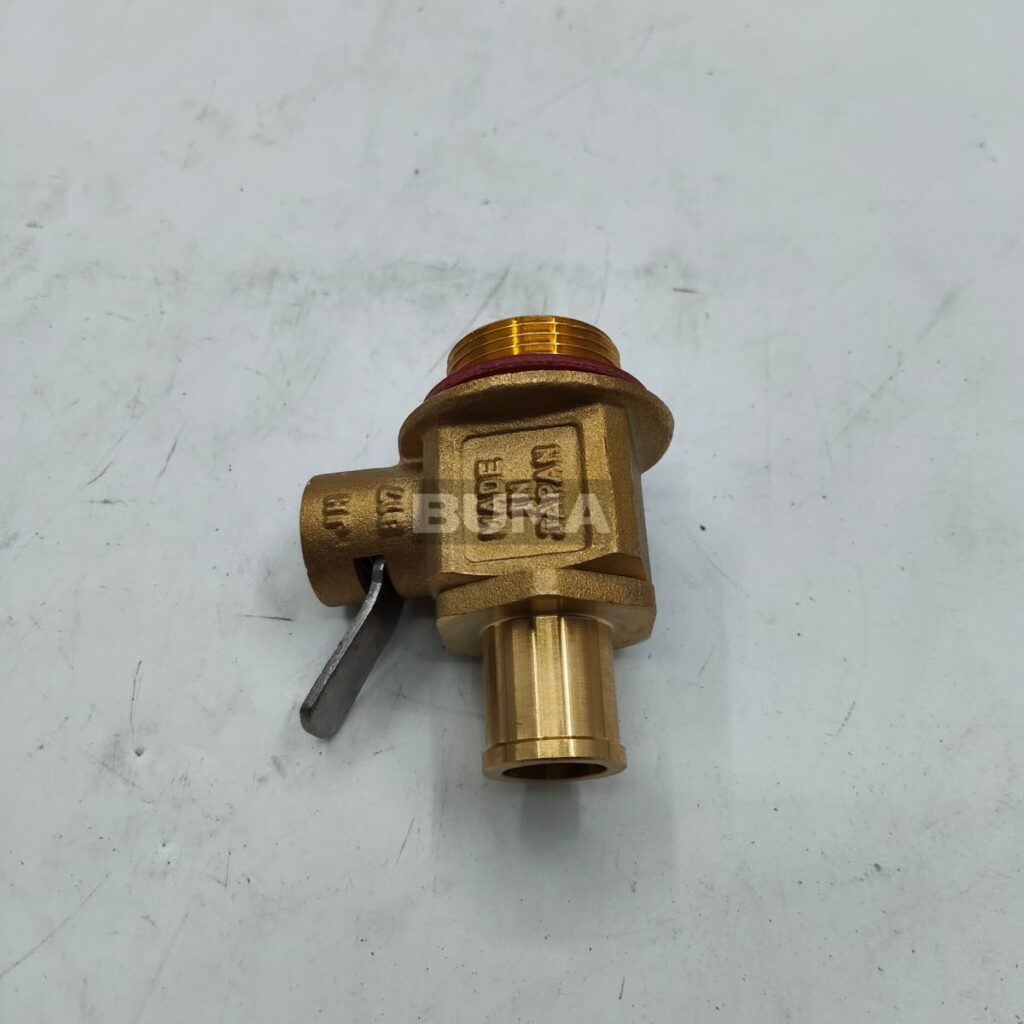

183-8176 Oil Pan Valve For Caat

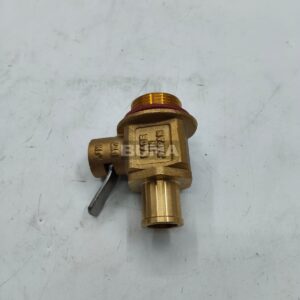

183-8176 Oil Pan Valve
