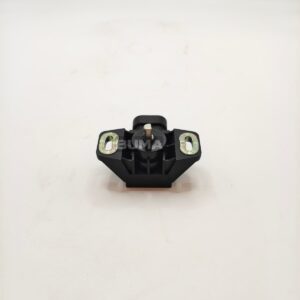

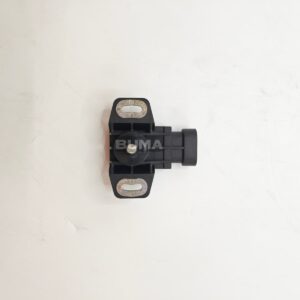

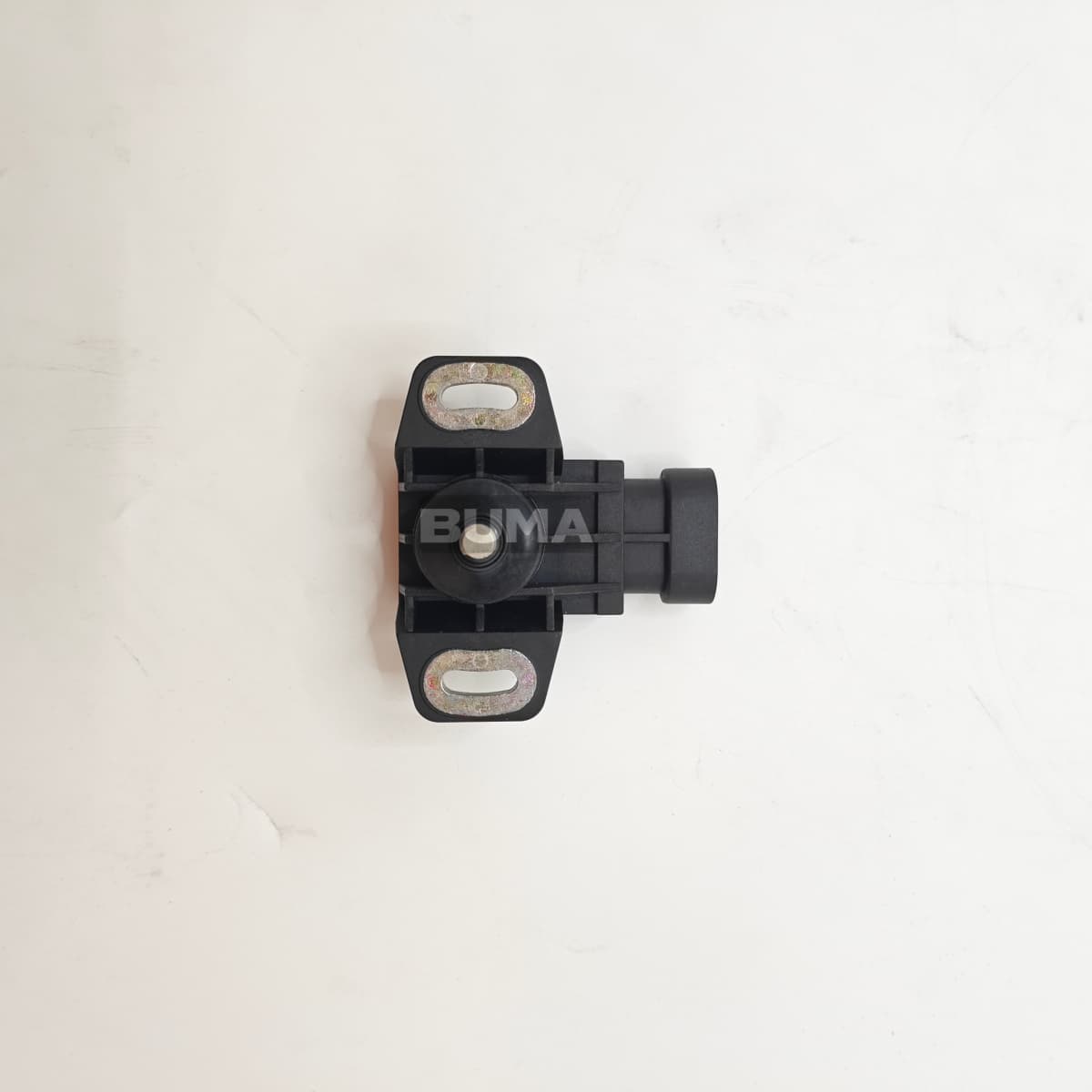

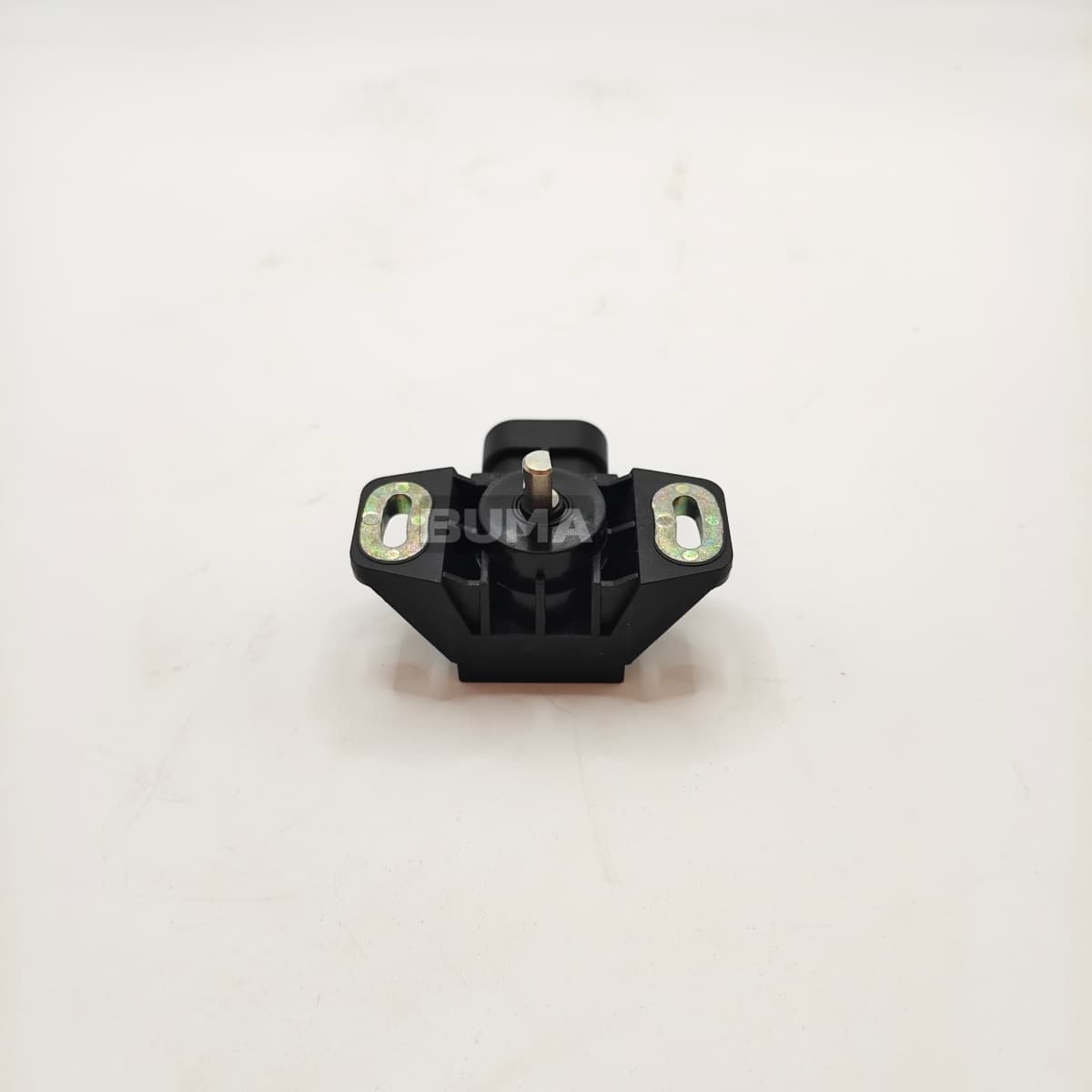

3784361M1 Sensor For Massey Ferguson

Part number 3784361M1 is a clutch pedal potentiometer / angular displacement sensor for Massey Ferguson and other agricultural machinery brands under the AGCO umbrella.

Function: Measures the physical displacement of the clutch or throttle pedal and feeds the signal into the tractor’s central transmission and electronic control units.

Connections: Typically features a 3-pin connection.

Cross-References: Elobau/Perkins 424A17A090, Renault/Claas 7700062070, and Landini 3784361M1.

It fits a wide range of Massey Ferguson tractor series across multiple generations, including:

5400 Series: 5425, 5435, 5445, 5455, 5460, 5465, 5470, 5475, 5480

6200 & 6400 Series: 6235, 6245, 6290, 6445 (Dyna), 6455, 6470, 6480, 6499, etc.

6600, 6700 & 7400 Series: 6614, 6616, 6713, 7465, 7480, 7495

7600 & 7700 Series: 7615, 7620, 7624, 7714, 7718, 7720, 7726

8200, 8400, 8600 & 8700 Series: 8240, 8280, 8450, 8480, 8650, 8690, 8730

Newer Series: 4700/4700M, 5M, 6S, and 7S series
