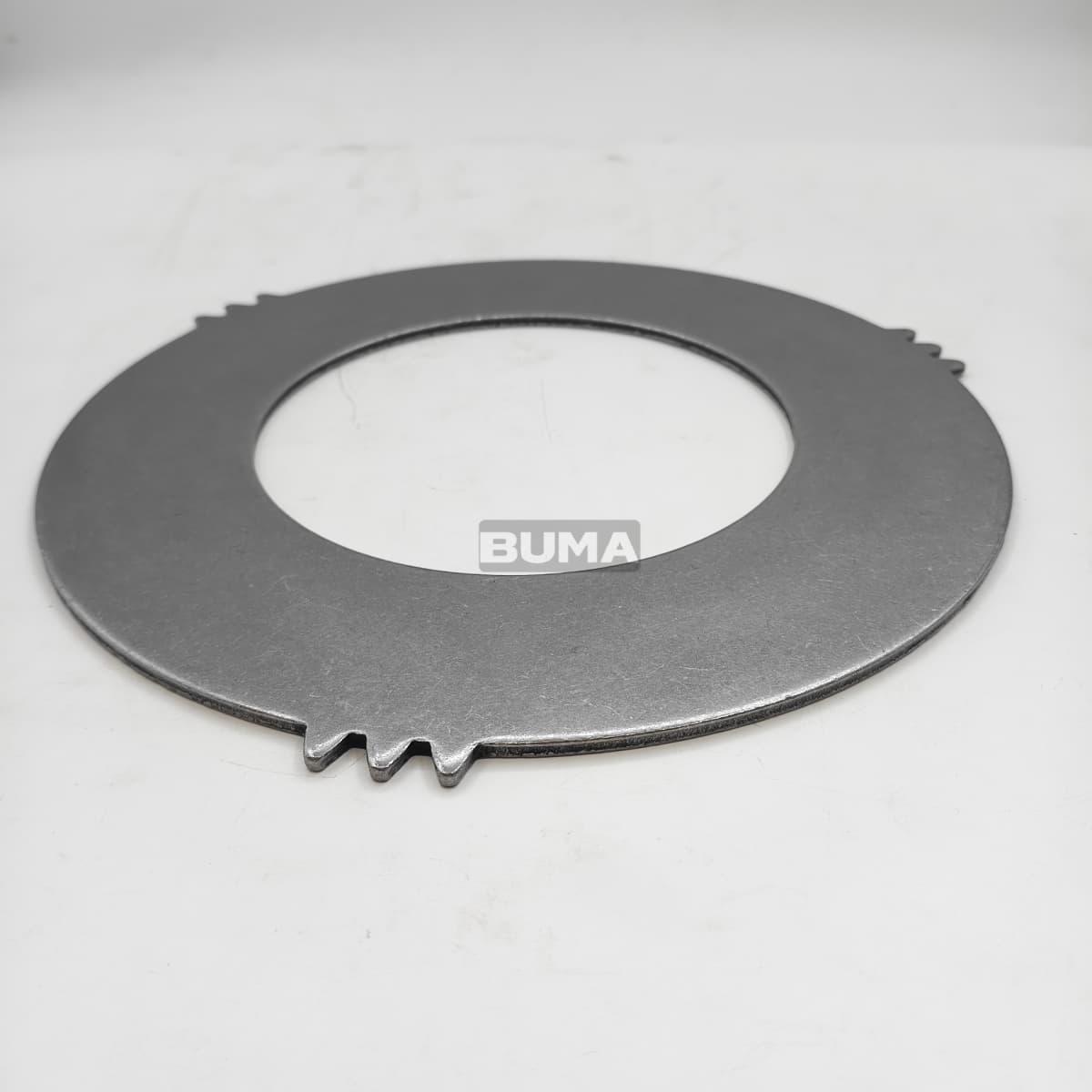

458/20289 Brake Counter Plate For JCB

Part number 458/20289 corresponds to Brake Counter Plate / Disc Intermediate for JCB.

Primary Role: It is installed inside the power brake hub of JCB heavy equipment. It alternates with the brake friction plates (typically paired with part number 458/20353) to create the clamping force necessary for smooth and reliable braking performance.

Outer Diameter (OD): 240 mm

Inner Diameter (ID): 130 mm

Thickness: 3.8 mm

Number of Teeth: 9 external teeth

This part is widely used across multiple generations of JCB heavy machinery, including:

Backhoe Loaders: 3CX, 4CX, 2CX, 2CXL, 214, 215, 216, 217, 1400B, 1550B, 1600B, 1700B, 3C, 3D, 3DX, 4C, 4CN.

Telehandlers (Loadall / Teleporter): 520, 520S, 526S, 526-55, 535-125, 540-170 (specifically for power brake hubs starting from serial number 279000).

Wheeled Excavators: JS130W, JS145W, JS160W, JS175W.

458/20289 Brake Counter Plate

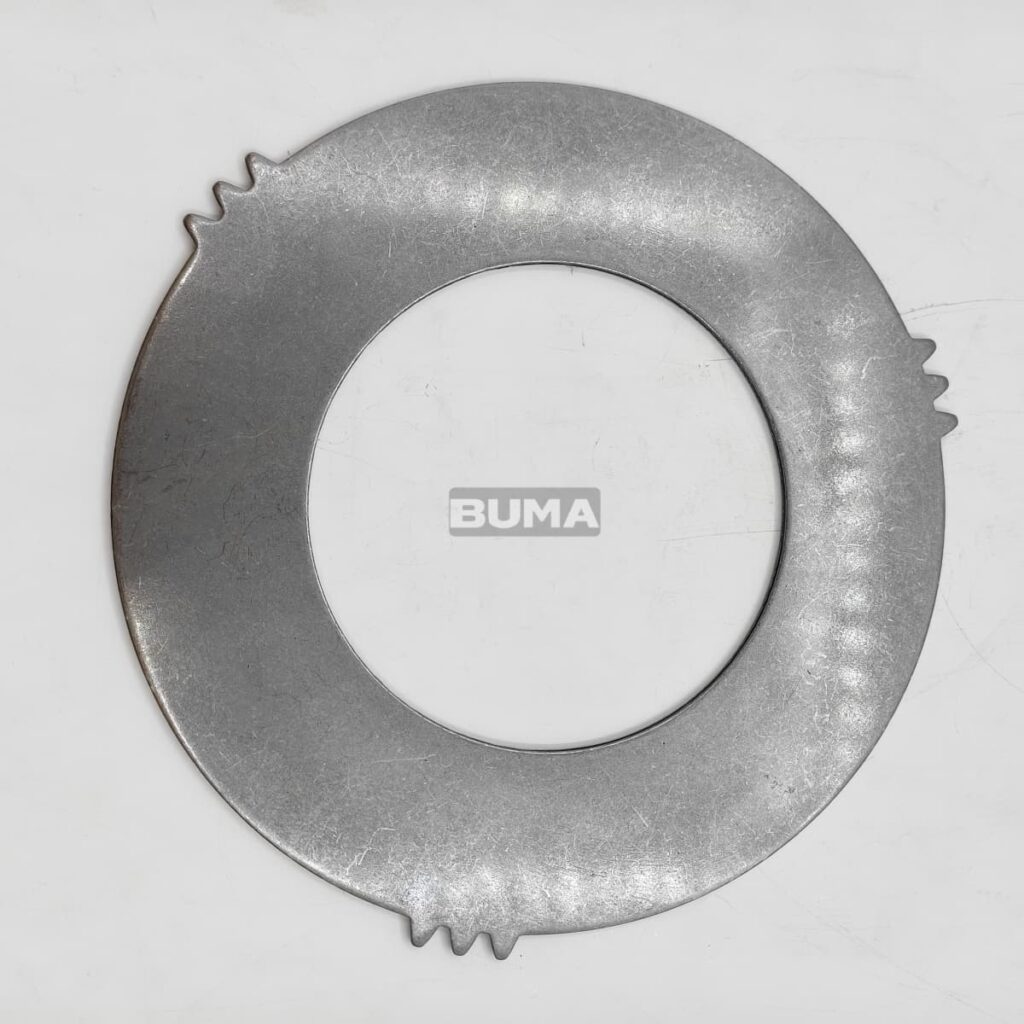

458/20289 Brake Counter Plate For JCB
