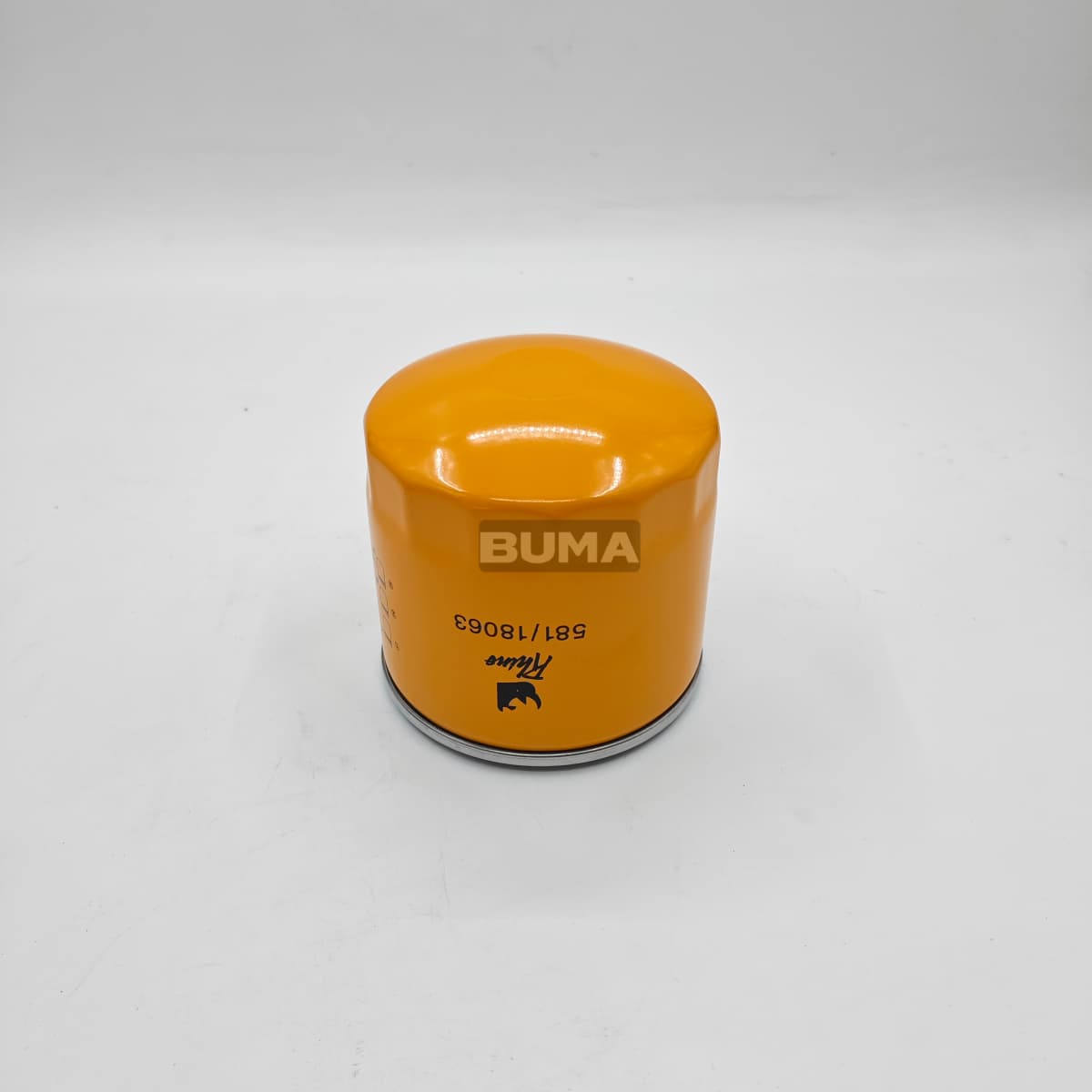

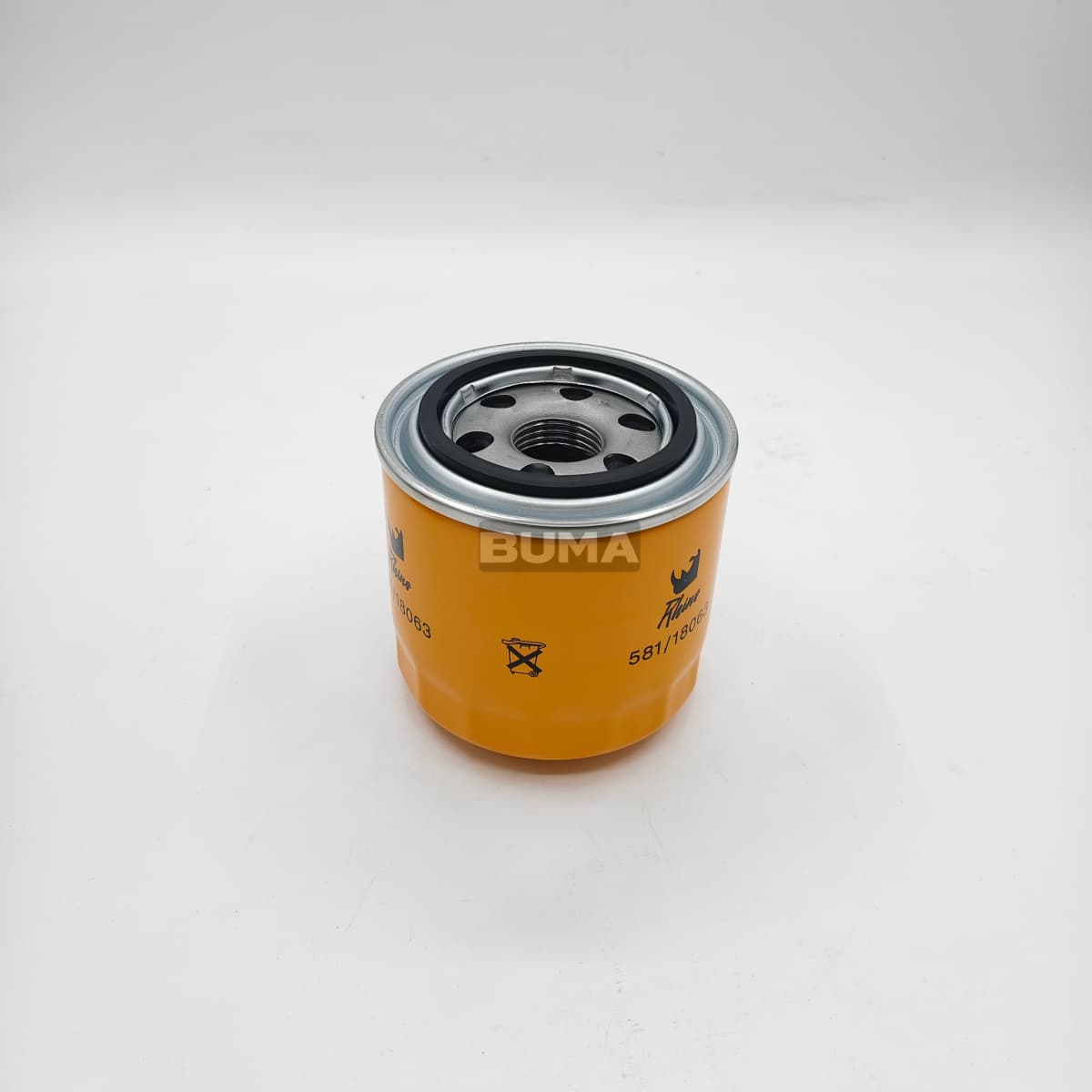

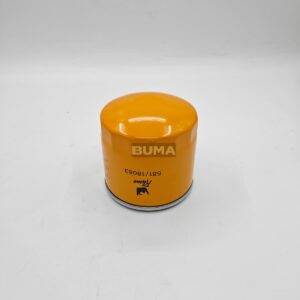

581/18063 Oil Filter For JCB

The part 581/18063 is a Spin-On Transmission / Hydraulic Oil Filter. It is engineered to capture contaminants and debris from the transmission and hydraulic systems, protecting internal gears and extending the operating lifespan of the machinery.

Thread Size: 1-12 UNF

Outer Diameter (OD): 93 mm to 94 mm (approx. 3.67 inches)

Overall Length/Height: 96 mm to 97 mm (approx. 3.8 inches)

Cross-Reference: 581/M7012, 581/M8563

This filter is widely utilized across various JCB heavy machinery ranges, particularly their signature backhoe loaders (popularly known as “3CX/4CX” lines), telehandlers, and wheeled loaders:

JCB Backhoe Loaders: 3CX, 4CX, 2CX, 4CN, 3C, 3D, 4C

American Market & Earlier Variants: 214, 215, 216, 217, 1400B, 1550B, 1600B, 1700B

JCB Loaders / Telehandlers: 520-50, 526-56, 531-70, 533-105, 535-95, 535-140, 540-140, 540-170, 541-70

Cross-Reference:

Donaldson: P551756

Fleetguard: HF35139 or HF6119

Baldwin: BT9561 or BT355

Mann & Hummel: WD 920/3

Wix: 51247
