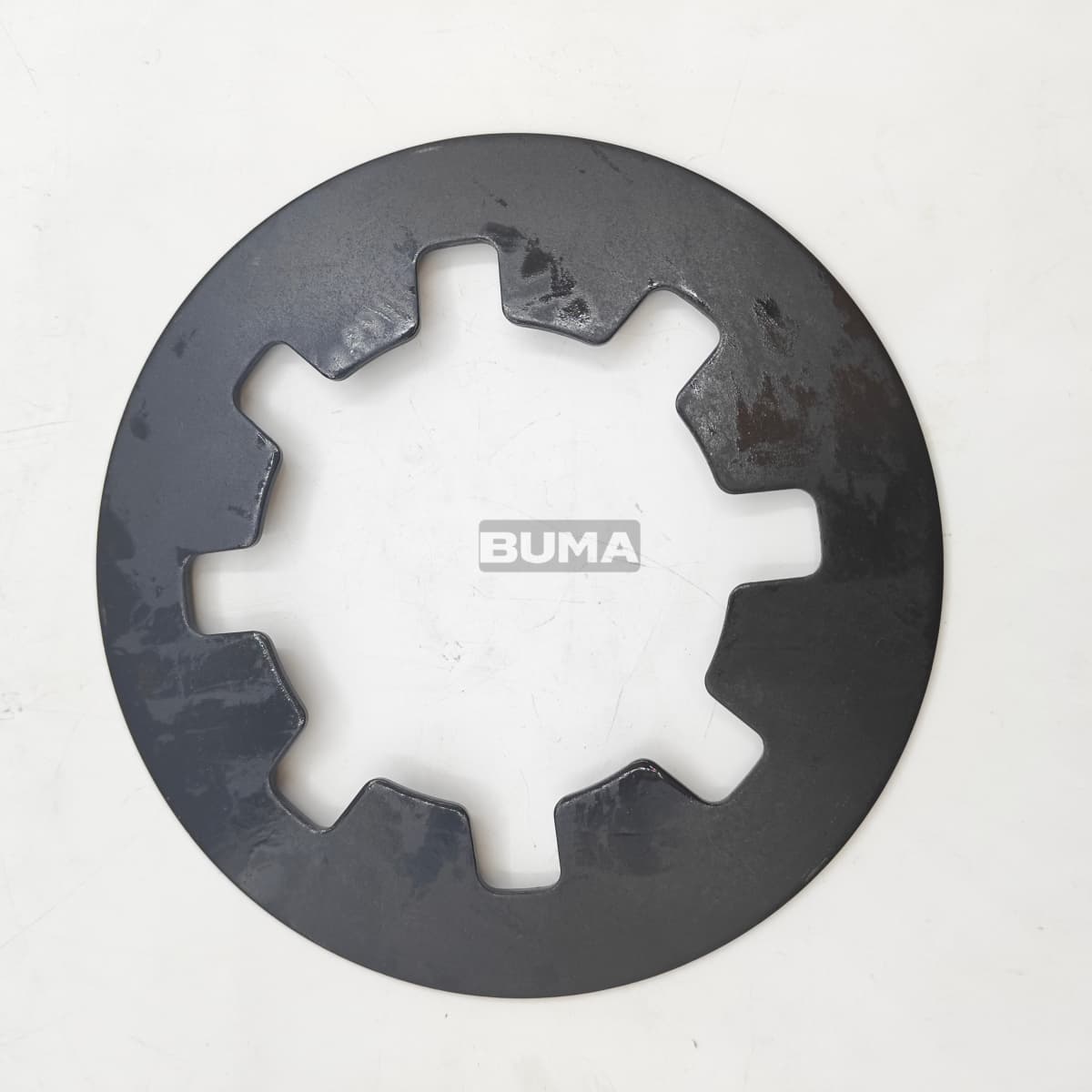

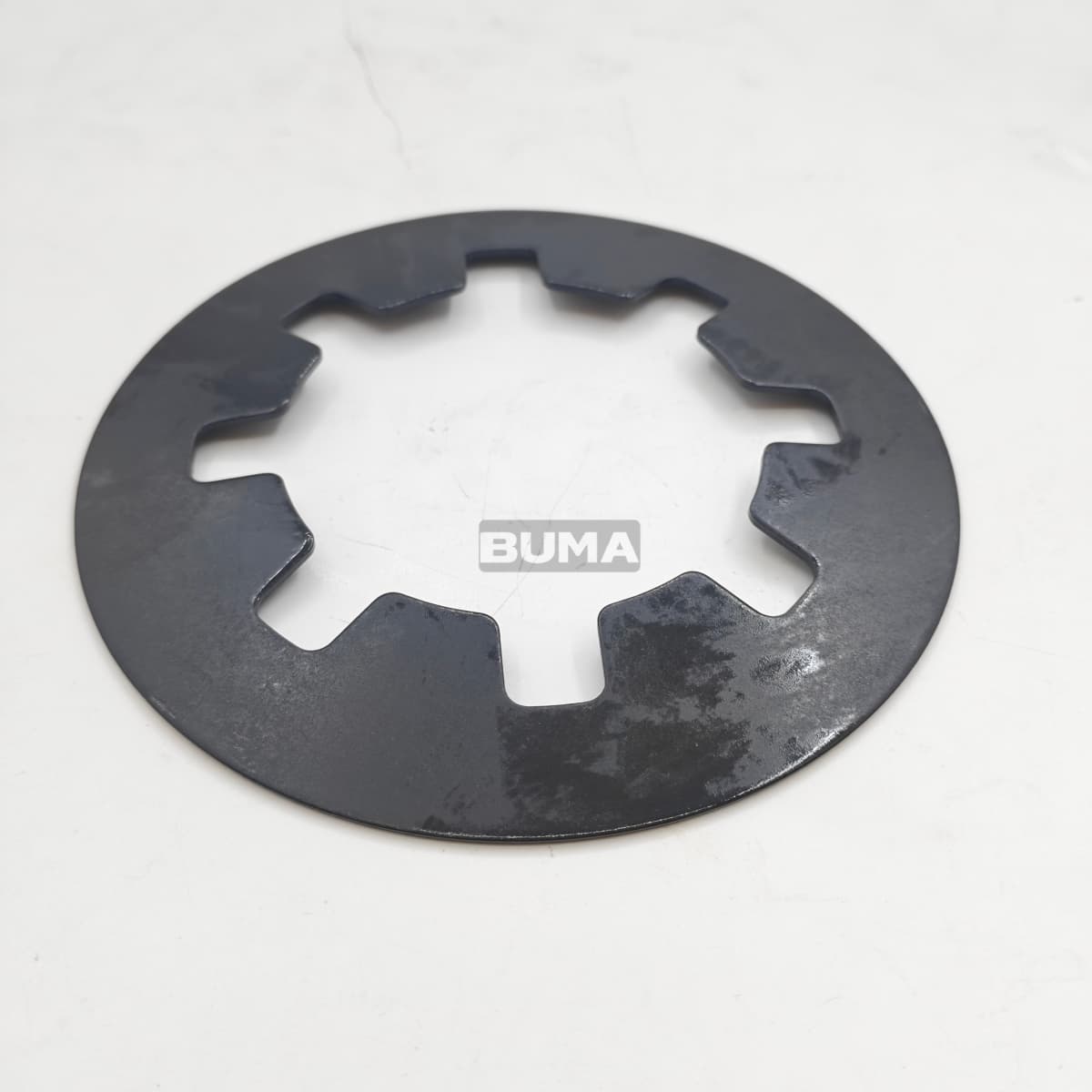

814/00207 Diaphragm Spring For JCB

The Part Number 814/00207 refers to a clutch pack diaphragm spring (also commonly listed as a tension washer or rondelle belleville) used in the transmission systems of various JCB heavy machinery.

Primary Function: Acts as a diaphragm spring / pressure plate within the forward clutch assembly to maintain tension and control engagement.

Alternative Part Number: 04/500235.

Physical Specifications:

Outer Diameter: 134.7 mm

Inner Diameter: 73.6 mm

Thickness: 1.8 mm

Number of Teeth: 8

This part is typically found in Syncro Shuttle and Powershift gearboxes. It fits a wide array of vintage and modern JCB equipment, including:

Backhoe Loaders: 3CX, 4CX, 3C-MK3, 3C 1400

Telescopic Handlers / Loadalls: 520, 525B, 530B, 540BM

Forklifts: 926
